Made in USA

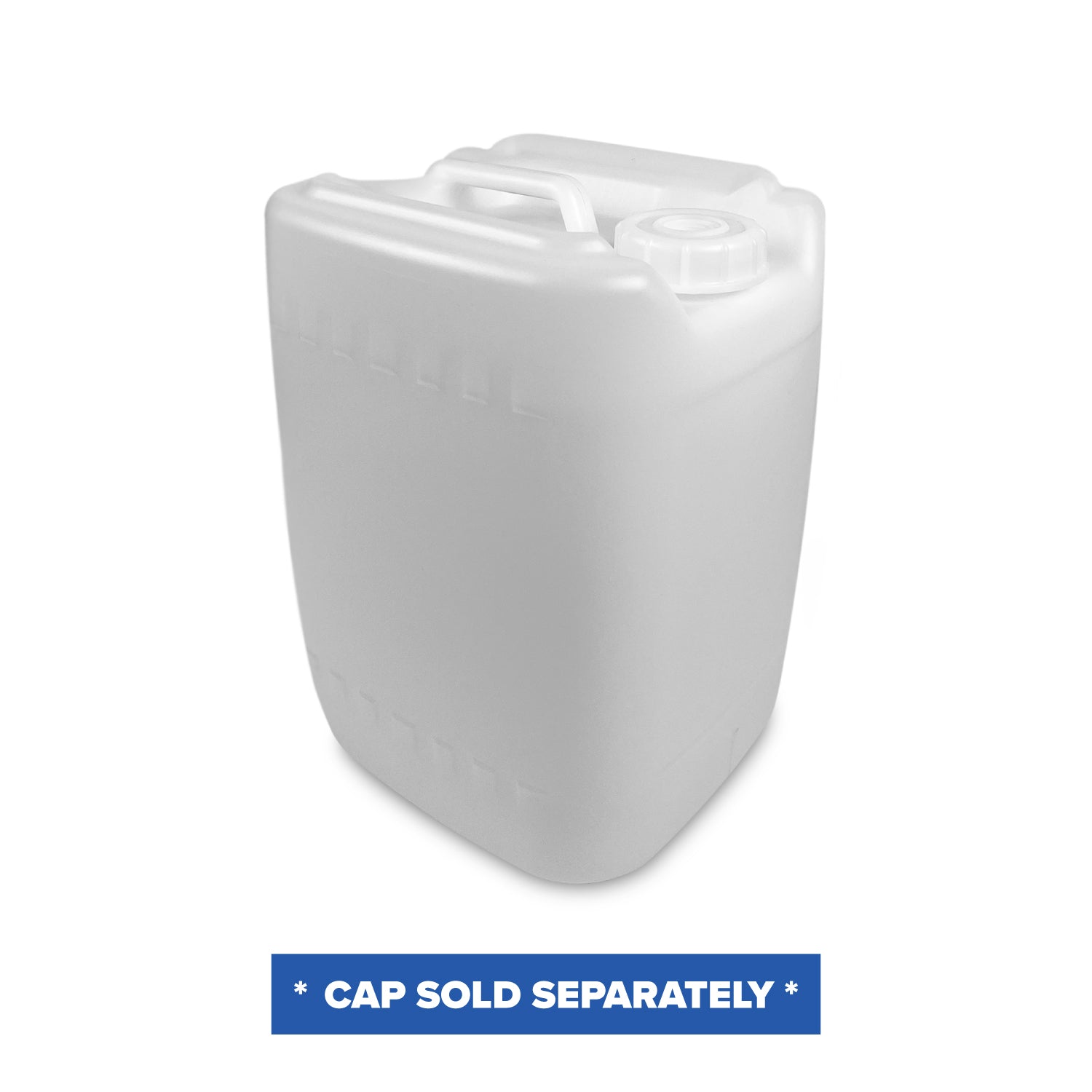

A 5 Gallon UN-Rated Rectangular Tight Head container (cap sold separately), made of semi-transparent plastic with a top handle and screw cap opening, is displayed against a white background.

A 5 Gallon UN-Rated Rectangular Tight Head, made of white plastic with a handle and threaded opening (cap sold separately).

A translucent 5 Gallon UN-Rated Rectangular Tight Head jerry can with a white top, featuring a handle and two openings on the top for pouring and refilling (cap sold separately), partially filled with blue liquid.

5 Gallon UN-Rated Rectangular Tight Head container, shown from a high angle against a white background, featuring white plastic construction and a built-in handle; cap sold separately.

A person wearing a yellow glove and blue sleeve lifts a 5 Gallon UN-Rated Rectangular Tight Head container (cap sold separately) filled with blue liquid by its handle.

Two 5 Gallon UN-Rated Rectangular Tight Head containers (cap sold separately) are stacked vertically, one on top of the other, with their neck openings visible. The background is plain and white.

5 Gallon UN-Rated Rectangular Tight Head - 1 Count (Cap Sold Separately)

$10.16 / unit

112 units per pallet

Quantity (Units):

1 Unit

We offer reliable shipping across the continental U.S., Hawaii, Alaska, military addresses, and U.S. territories including Puerto Rico, Guam, and the U.S. Virgin Islands.

Orders are typically processed within 1–2 business days from our warehouse in Indiana. Delivery times vary by destination but generally fall within 1–3 business days for most domestic locations.

Need Customized Packaging?

Add your branding or custom design to this product.

Request a Sample

This UN-rated 5-gallon rectangular tight-head container combines industrial-grade durability with space-efficient design for the safe storage and transport of regulated liquids. Manufactured from high-density polyethylene (HDPE), it meets DOT/UN performance standards while providing excellent chemical resistance and stackable convenience.

The integrated top handle and molded hand-grips enable safe, controlled pouring, while the 70mm threaded neck accepts tamper-evident, vented, or standard caps for secure closure. Please note that the vent is sealed by default and requires manual drilling before use. For best results, we recommend using a 3/8 drill bit to carefully open the vent for optimal airflow and controlled pouring.

With its rectangular footprint and straight-wall design, this container maximizes warehouse and shipping cube efficiency while delivering the robust performance required for hazardous material transport and industrial liquid storage applications.

Key Advantages

Space-efficient rectangular shape maximizes pallet and shelf utilization
UN-rated 3H1/Y1.8/150 certification for secure transport of Packing Group II regulated liquids
Durable HDPE construction resists dents, punctures, and chemical attack
Integrated handle and molded hand-grips enable safe, controlled dispensing
Stackable straight-wall design maximizes warehouse and shipping cube
FDA-compliant resin suitable for food ingredients, potable water, and edible oils
Compatible with automated filling and capping lines for high-volume operations

Ideal Applications

Hazardous Material Transport

UN certified for safe shipment of regulated solids and semi-liquids when paired with compliant lid, meeting DOT packaging standards.

Industrial Chemical Storage

HDPE chemical resistance makes these lids ideal for lubricants, adhesives, and specialty materials requiring secure containment.

Food & Beverage Processing

BPA-free, FDA-compliant construction makes this pour-spout lid ideal for bulk oils, syrups, brines, sauces, and dry ingredients that need hygienic storage and controlled dispensing.

Agricultural Applications

Weather-resistant HDPE construction perfect for outdoor storage of seeds, fertilizers, and feed with tamper protection.

Oils & Lubricants

Tight-head design allows controlled pouring of motor oils, hydraulic fluids, paints, and coatings without spillage.

UN Certified Safety

Meets United Nations and DOT performance standards for safe storage and transport of hazardous materials.

Product Details

Engineered for demanding industrial, commercial, and institutional applications, this container is manufactured from high-molecular-weight High-Density Polyethylene (HDPE) selected for both industrial and food-contact applications.

High-density polyethylene (HDPE) construction with robust wall strength
UN certification complies with 3H1/Y specifications for liquids
Excellent resistance to acids, caustics, detergents, and solvents
70mm buttress threaded neck finish accepts tamper-evident caps
Non-corrosive, rust-free alternative to steel containers
Code #2 recyclability supporting sustainability initiatives
FDA-compliant resin for food-grade applications
Made in the USA ensuring consistent quality and shorter lead times

Compatible Lids

Complete your storage solution with these compatible closure options:

Natural 70mm Cap Red Spigot

Any questions? Contact our support team

Contact Us

SKU	E100348
Material	High-Density Polyethylene (HDPE)
Dimensions	Approx. 11.2" L × 10.2" W × 14.2" H
Capacity	5 Gallons (640 oz / 18.9 L)
Shape	Rectangular tight head with integrated top handle
Colors Available	Natural (Translucent)
UN Rating	3H1/Y1.8/150 for Packing Group II liquids
Closure Size	70 mm threaded neck (cap sold separately)
Handle Style	Molded-in carry handle for controlled pouring
Recycling Code	#2 (HDPE)
Case Quantity	1 container
Pallet Quantity	112 containers per pallet

Jodi is great to work with. A true ROCK STAR!!!!!

Hi there! Thank you so much for your kind words about Jodi. We are thrilled to hear that she provided you with excellent service. We will be sure to pass along your compliments to her. Thank you for choosing our product!

The carboys and caps I purchsed are exactly what I was hoping for. I give this 3-stars becuase I did not receive all of the caps. I ordered the caps along with the carboys and they were loosly thrown into the carboy shipping boxes but one was missing. I wish they were not "sold seperately" because I think that would prevent the issue. Having said that, I will likely order these again and just hope I don't get shorted another cap next time.

Thank you for taking the time to leave a review. We are happy to hear that you are satisfied with the carboys and caps you purchased. We apologize for the missing cap in your order. Please contact me at 888-631-0888 so that we can get your missing caps shipped out asap. We appreciate your feedback and hope to have the opportunity to serve you again in the future.

An excellent product at an excellent price. Spigots are good quality. I bought 4.

Thank you so much for leaving such a positive review! We are thrilled to hear that you are happy with your purchase and that the spigots are of good quality. We appreciate your business and hope that our product continues to meet your expectations. Have a great day!

Excellent design. Just what I needed

Thank you for the positive feedback! We're happy to hear that our 5 Gallon UN-Rated Rectangular Tight Head met your needs perfectly. We appreciate your support and hope to continue providing you with excellent products in the future. Have a great day!

These are outstanding quality great value containers! Customer service and ordering is great and shipping is great. Very pleased and we are repeat customers. This is our #1 supplier for these containers and lids.

1 2 3

Frequently Asked Questions

Yes. Each container carries a current UN certification (e.g., 3H1/Y1.8/150), allowing you to legally ship regulated Class II and Class III hazardous liquids domestically and internationally when packed and closed according to the marking instructions.

They are blow-molded from high-density polyethylene (HDPE), a tough, chemical-resistant resin that is widely accepted in recycling streams (#2 plastic).

Yes. The virgin HDPE resin and closure components meet FDA food-contact requirements, making the container suitable for edible oils, syrups, and other food ingredients as well as industrial products. Q: Can these rectangular tight heads be stacked on a pallet? A: Absolutely. The flat sides and reinforced top surfaces are designed for interlocking stackability, helping maximize pallet density while maintaining stability during transport and storage.

This listing is for one (1) individual 5 gallon UN-rated rectangular tight head container, ideal for small-batch trials or replacement needs. Q: Are these HDPE tight heads compatible with aggressive chemicals such as acids, alkalis, and solvents? A: HDPE offers broad chemical resistance to a wide range of industrial chemicals, including many acids, bases, detergents, and petroleum-based solvents. Always verify compatibility with the specific product you intend to package before filling.
